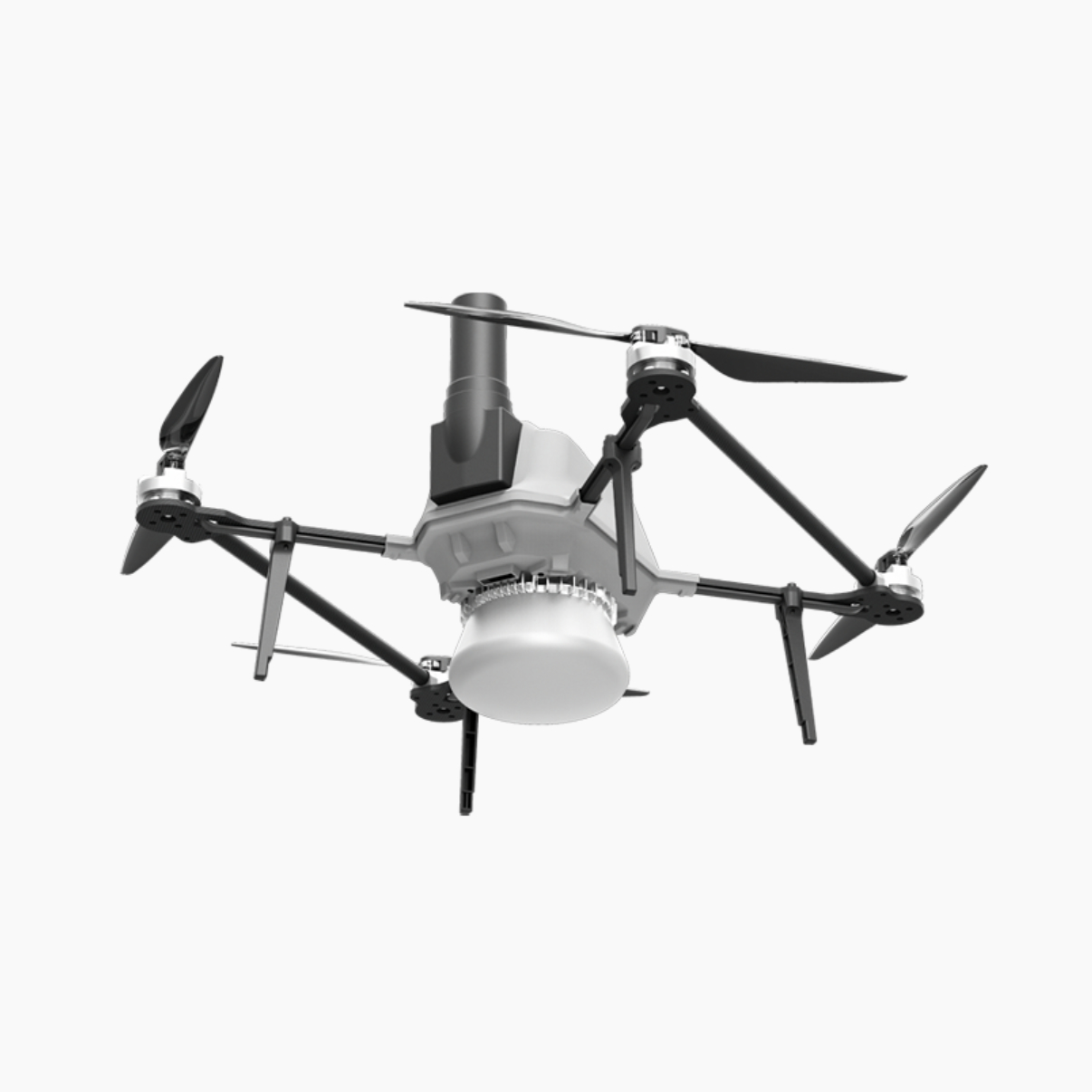

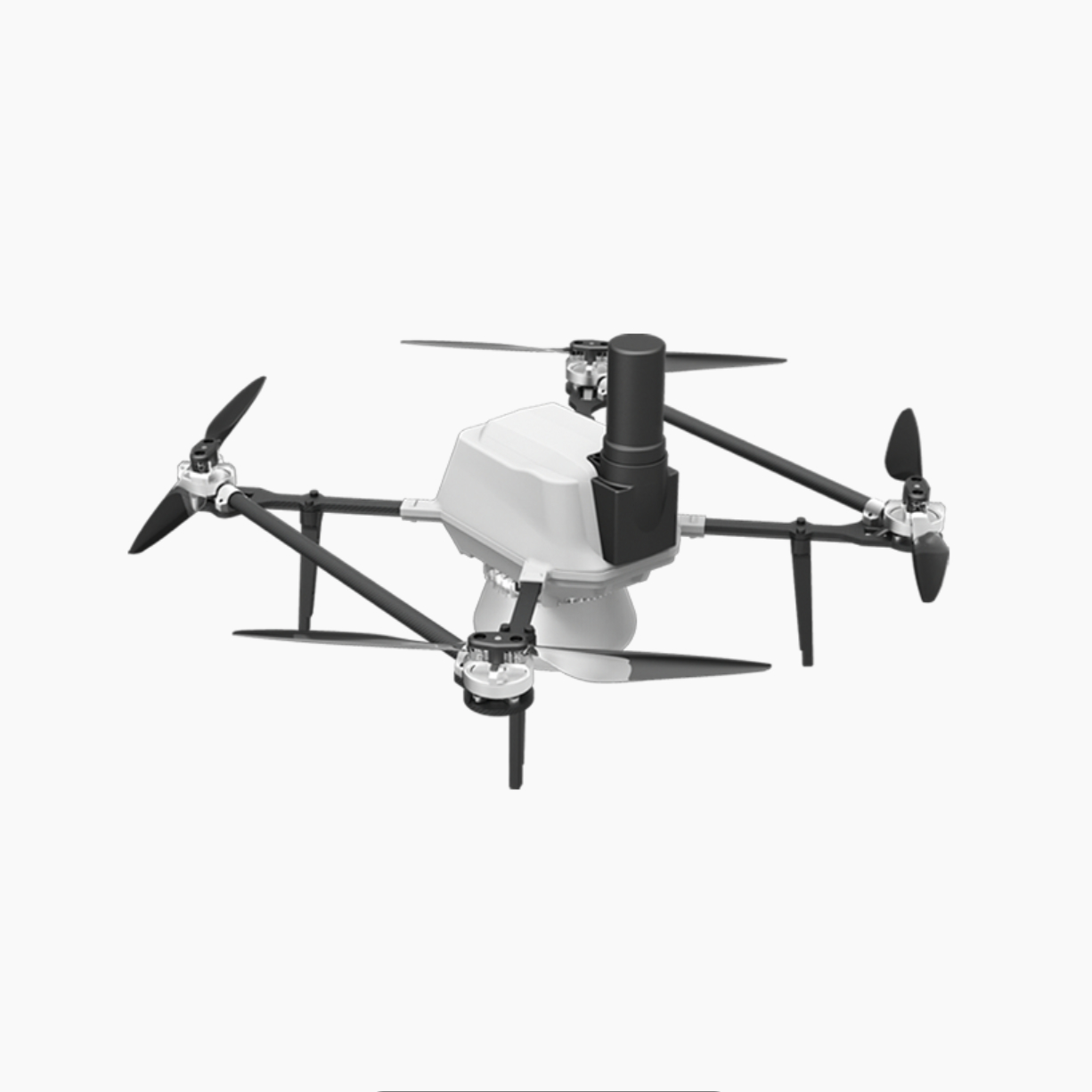

The LS-2 light show drone features a carbon fiber and aluminum alloy composite structure, integrating the FC-2M dual-redundant, highly reliable flight control system, a high-precision multi-frequency RTK module, dual-redundant data transmission modules, a high-performance powertrain, and a high-brightness, full-color lighting module. Designed specifically for formation light shows, it offers a compact, long-endurance, highly reliable, and safe quadrotor unmanned aerial platform.
貨號 :
LS-2訂單(最小起訂量) :
200支付 :
T/T產品產地 :
CHINA顏色 :
WIHTE裝運港口 :
SHANGHAI/SHENZHEN交貨時間 :
30DAYS
The LS-2 light show drone features a carbon fiber and aluminum alloy composite structure, integrating the FC-2M dual-redundant, highly reliable flight control system, a high-precision multi-frequency RTK module, dual-redundant data transmission modules, a high-performance powertrain, and a high-brightness, full-color lighting module. Designed specifically for formation light shows, it offers a compact, long-endurance, highly reliable, and safe quadrotor unmanned aerial platform.
Key Features
Technical specification
DRONE | Unfolded dimensions | 451x451x180mm |
Folded dimensions | 268x268x180mm | |
Wheelbase | 339.5mm | |
Standard flight weight | 640g | |
GNSS | 184-channel, GPS L1C/A L2C, GLO L1OF L2OF, GAL E1B/C E5b, BDS B1I B2I, QZSS L1C/A L1S L2C, SBAS L1C/A |
|
Positioning accuracy | 11 cm + 1 ppm CEP | |
Maximum ascent speed | 6m/s | |
Maximum descent speed | 6m/s | |
Maximum horizontal flight speed | 10m/s | |
Maximum takeoff altitude | 5000m | |
Maximum wind speed | 14m/s | |
Maximum flight time | 30 ± 1 minute | |
Maximum flight time | 21 minutes | |
Maximum lighting module power | 24W | |
Operating temperature | -20°C to 60°C | |
Operating humidity | ≤85% RH (non-condensing) | |
Storage temperature | 0°C to 40°C | |
Storage humidity | 65 ± 20% RH | |
Communication method | Dual redundant data transmission + WiFi | |
Maximum communication distance | 2-3 km | |
BATTERY | Battery type | LiPo 4S1P |
Nominal capacity | 2250 mAh | |
Nominal voltage | 15.4 V | |
Nominal energy | 34.65 Wh | |
Weight | 188 g | |
Charging time | 1-1.5 hours | |
Charging temperature | 0°C to 45°C | |
Storage temperature | Storage time less than 3 months: -10°C to 45°C | |
Storage time greater than 3 months: 23 ± 5°C | ||
Storage humidity | 65 ± 20% RH |
FAQs
1. What is the approximate service life of a drone?
5-10 years, mainly depends on the user's maintenance of the drone.
2. How many flight hours?
Mainly, the battery needs to be replaced with a new one after 400-500 cycles of charging.
3. Which parts need to be replaced regularly?
Propellers, landing gear, water pumps, centrifugal nozzles, we recommend equipping each drone with 2 pairs.
4. What services does the drone need?
Clean the drone frequently and pay attention to whether the screws are loose and need to be replaced.
5. How long is the interval?
Mainly depends on the user's use. You should observe the condition of the drone frequently.
